HYDRAULIC MASTER CYLINDERS

Part# 'MCP18875'
MCP Master Cylinder **NEW**
Billet, 7/8" Bore
Brass fittings installed.
*Uses Dot 3/4 or Dot 5 Brake Fluid
List $185.00
Sell $134.00

Part# 'MCP18875-AN'
MCP Master Cylinder
Billet, 7/8" Bore "UAS"
AN fittings installed.
*Uses Dot 3/4 or Dot 5 Fluid
List $185.00
Sell $134.00

Part# 'MCP750B'
MCP Master Cylinder
Billet, 3/4" Bore (Brass fittings)
Uses Dot 3/4 or Dot 5 Brake Fluid
Use with Mini-Lite Calipers.
(also available with AN fittings)
List $180.00
Sell $130.50

Part# 'MCP3750'
MCP "Pro" Master Cylinder
Billet, 3/4" Bore, Single Line
Uses Dot 3/4 Brake Fluid
Brass fitting installed.
List $168.00
Sell $121.80

Part# 'MCP3750-AN'
MCP "Pro" Master Cylinder
Billet, 3/4" Bore, Single Line
Uses Dot 3/4 Brake Fluid
AN fitting installed.
List $175.50
Sell $127.25

Obsolete Master Cylinders for reference.

Part# 'MCP875'
MCP Master Cylinder
Cast, 7/8" Bore
Replaced by #MCP18875
No Longer Available

Part# 'ENG600'
Enginetics Master Cylinder
Cast, 7/8" Bore
Replaced by #MCP18875
No Longer Available
Schematic & Instructions

Part# 'ENG4000'
Enginetics Handle Bar Master Cylinder
Cast, 3/4" Bore, Single Line
Some replacement parts are available.

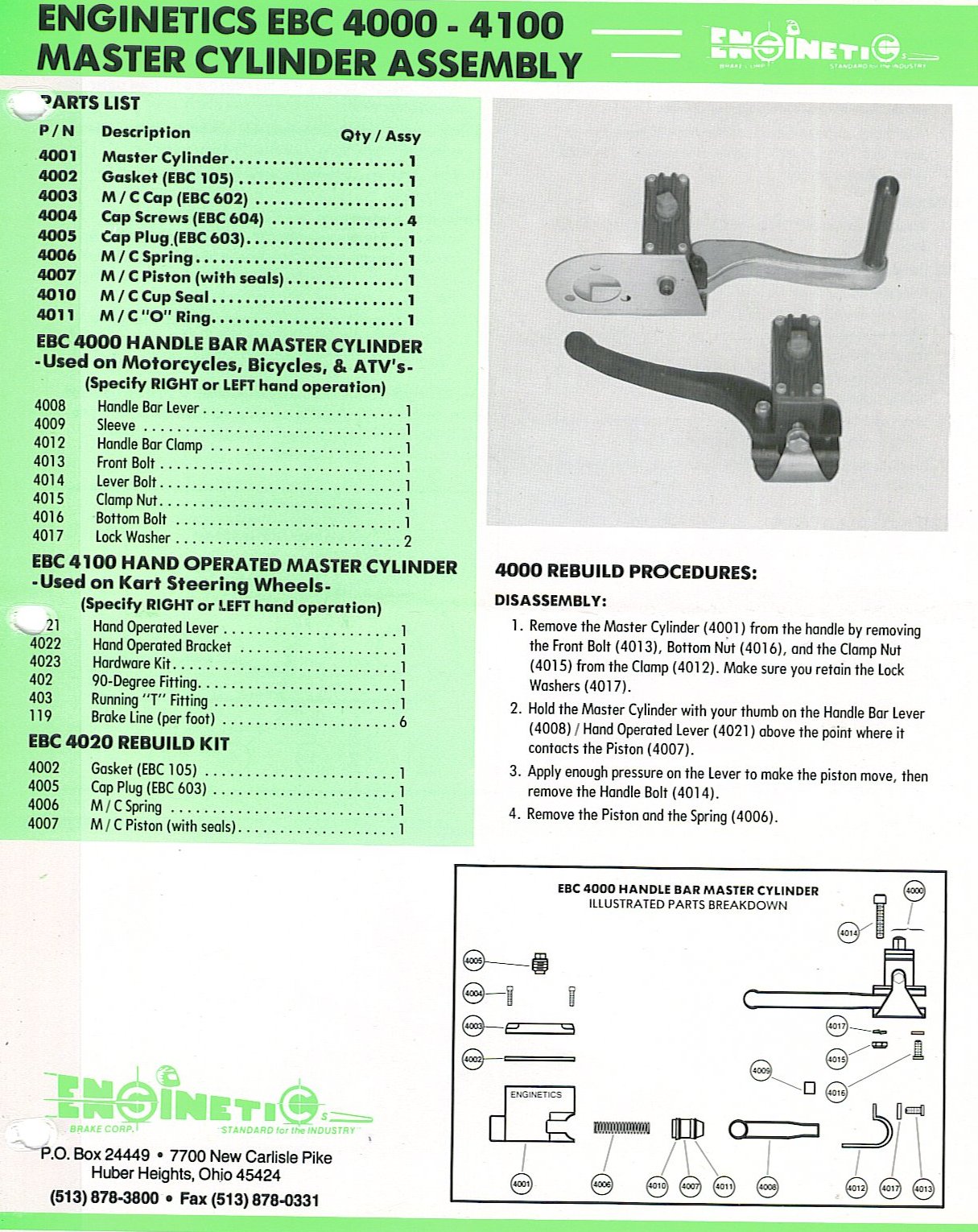

Instructions
No Longer Available.

Rebuild Kits

Part# 'VK307'
Drilled Bolt Kit
for Master Cylinder
2 Required
5/16" x 2-1/4"
Sell Each $2.95

Master Cylinder Replacement Parts

Part# 'MCP18877'
MCP Master Cylinder Cap
Billet Aluminum Version
Fits #MCP18875
List $26.00
Sell $20.80

Part# 'MCP877'
MCP Master Cylinder Cap
Cast Version
Fits #MCP 875
List $8.00
Sell $6.40

Part# 'MCP878'
Cap O-Ring
Fits #MCP 877 & 18877

Sell $0.50

Part# 'ENG105'
Gasket for Cap
Fits Enginetics Master
Fits #ENG 600 & 4000
Sell $2.00

Part# 'MCP879'
Plastic Filler Cap Plug
Fits Most Master Cylinders
Same as #ENG603
Sell $1.20

Part# 'MCP879M'
Metal Filler Cap Plug
Fits Most Master Cylinders

Sell $1.20

Part# 'MCP3879.1'
Aluminum Filler Cap Plug
Fits Most Master Cylinders
List $9.00
Sell $7.20

Part# 'MCP880'
Cap Screw
Fits #MCP875, 18875 & 750
2 Required.
Sell Each $0.30

Part# 'MCP881.1'
Cap Screw O-ring
Fits #MCP875, 18875 & 750
2 Required.
Sell $0.80

Part# 'ENG604'
Cap Screw
Fits #ENG600
4 Required
Sell Each $0.70

Part# 'MCP884'
Pivot Pin
3/16" x 3/4" Long
Fits #MCP875
Same as #ENG106
Sell $0.30

Part# 'MCP885'
Pivot Pin
3/16" x 7/16" Long
Fits #MCP875

Sell $0.30

Part# 'MCP784'
Pivot Pin
3/16" x 1" Long
Fits #MCP750

Sell $0.30

Part# 'MCP886'
Boot, Master Cylinder
Fits #MCP875
List $3.00
Sell $2.40

Part# 'MCP786'
Boot, Master Cylinder
Fits #MCP750
List $3.00
Sell $2.40

Part# 'MCP3886'
Boot, Master Cylinder
Fits #MCP3750
List $3.50
Sell $2.80

Part# 'ENG908'
Dust Shield Kit
Fits #ENG600
List $15.00
Sell $12.00

Part# 'MCP887'
Piston with Buna Seals
Fits #MCP875
List $10.00
Sell $8.00

Part# 'MCP887EP'
Piston with EP Seals
Fits #MCP875
List $13.00
Sell $10.40

Part# 'MCP787'
Piston with Seals
Fits #MCP750 & 3750
List $10.00
Sell $8.00

Part# 'MCP888.1'
O-Ring Only
Fits #MCP 875, #ENG 600
Uses Dot 3/4 or Dot 5 Brake Fluid

Sell $1.00

Part# 'MCP889.1'
Cup Seal Only EP
Fits #MCP 875, #ENG 600
Uses Dot 3/4 or Dot 5 Brake Fluid
List $3.00
Sell $2.40

Part# 'MCP788'
O-Ring Only
Fits #MCP 750 & 3750, #ENG 4000
Same as ENG 4010
List $1.50
Sell $1.20

Part# 'MCP789'
Cup Seal Only
Fits #MCP 750 & 3750, #ENG 4000
Same as ENG 4011
List $2.00
Sell $1.60

Part# 'MCP890'
7/8" Internal Snap Ring
Fits #MCP875

Sell $0.50

Part# 'MCP790'
3/4" Internal Snap Ring
Fits #MCP750
List $1.00
Sell $0.80

Part# 'MCP3890'
1" Internal Snap Ring
Fits #MCP3750

Sell $0.50

Part# 'MCP891'
M/C Spring
Fits #MCP875

Sell $1.20

Part# 'MCP791'
M/C Spring
Fits #MCP750
List $3.50
Sell $2.80

Part# 'ENG611'
M/C Spring
Fits #ENG600
Sell $1.50
